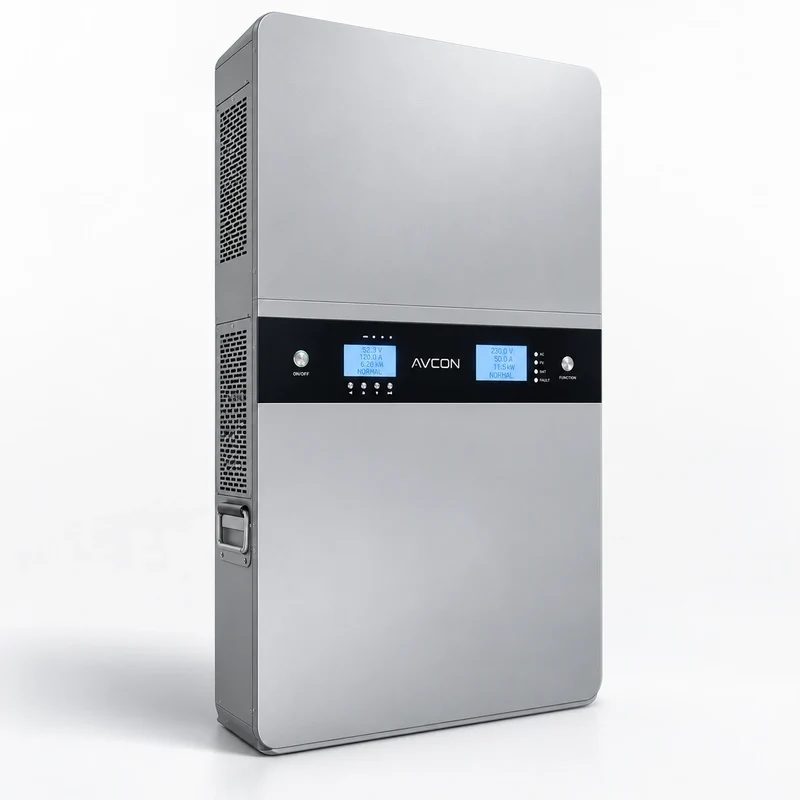

5.12 kWh 5 kW alt-i-ett off-grid energilagringssystem

Om dette produktet

The Shielden 5.12kWh 5kW All-in-One Off-Grid Energy Storage System integrates battery storage, solar charging, inverter output, and system control into a single enclosure, helping simplify system installation and reduce the number of separate components required in an off-grid solar installation.

Systemet bruker en 51.2V 100Ah LiFePO4 batteri, som gir omtrent 5.12kWh of nominal energy storage capacity. The battery is rated for at least 5,000 cycles under 0.5C/0.5C operation at 25°C, making it suitable for repeated daily charging and discharging. The integrated inverter provides 5500VA rated apparent power with selectable 208V, 220V, 230V, or 240V AC output and supports both 50Hz and 60Hz systems.

For solar charging, the unit supports up to 6000W PV-inngang, a maximum PV input voltage of 500V, and an MPPT operating voltage range of 120V til 430V. It can also accept AC utility or generator input, allowing the system to combine solar energy, battery storage, and external AC power within one integrated platform.

System operation can be monitored through APP and LCD interfaces, while RS485, RS232, and CAN communication interfaces support communication with compatible external equipment. The unit can be installed either as a wall-mounted or floor-standing system depending on project requirements.

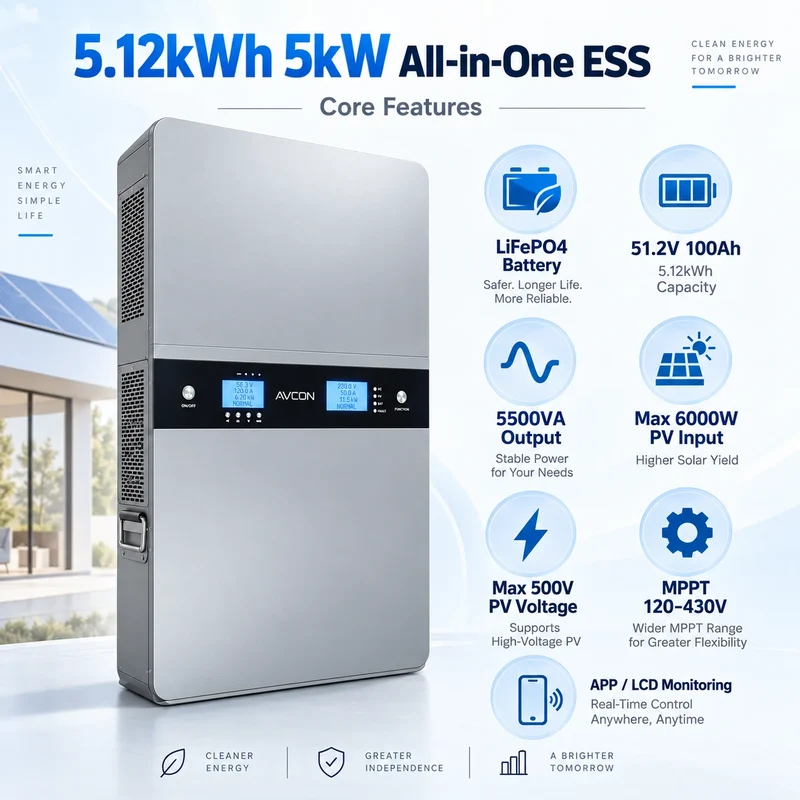

Produkt Høydepunkter

• Integrated 5.12kWh LiFePO4 Battery
  51.2V 100Ah lithium iron phosphate battery integrated directly into the energy storage system.

• 5kW-Class Off-Grid Power System
  5500VA rated apparent output power for residential and light commercial electrical loads.

• Up to 6000W Solar PV Input
  Supports solar arrays up to 6000W with a maximum PV input voltage of 500V.

• Wide MPPT Operating Range
  120–430V MPPT voltage range provides flexibility when configuring PV strings.

• Solar + Battery + AC Integration
  Supports PV charging, battery energy storage, AC input, and AC output within one system.

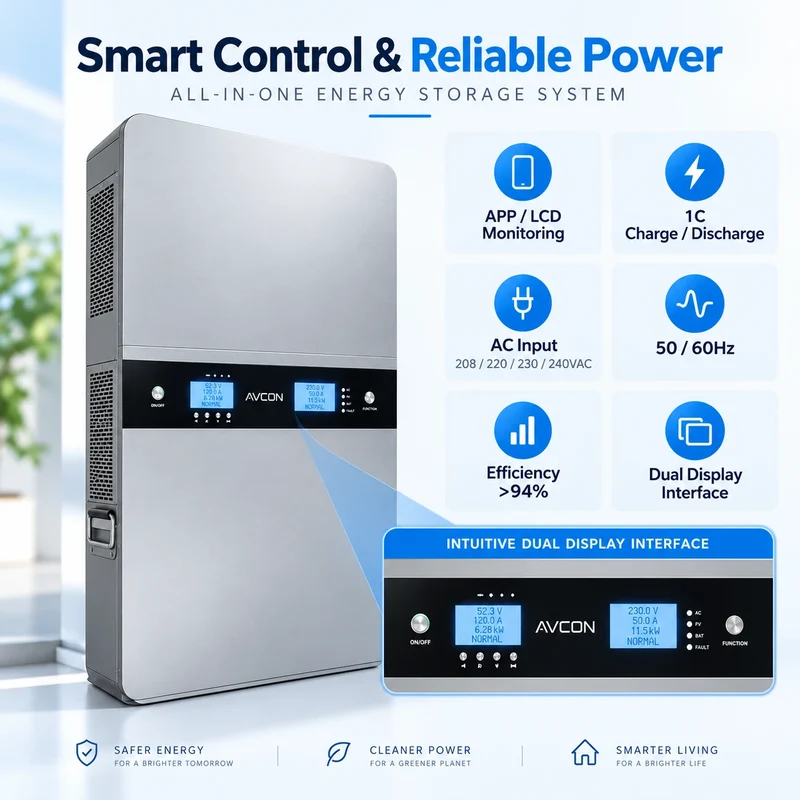

• APP & LCD Monitoring
  Local system status and operating information can be accessed through the integrated display and supported APP interface.

• Flere kommunikasjonsgrensesnitt
  RS485, RS232, and CAN interfaces are available for system communication.

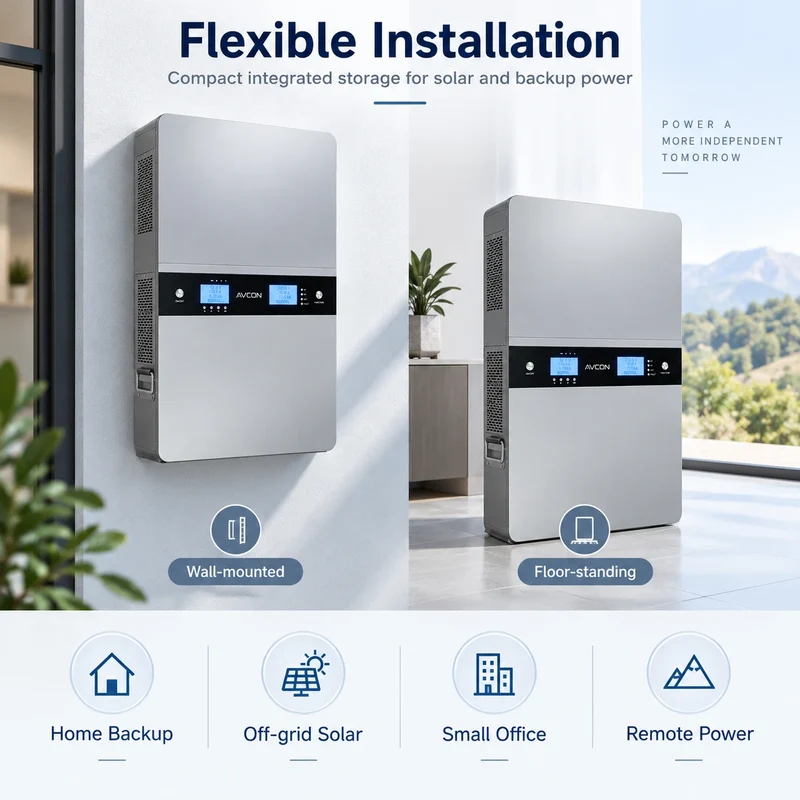

• fleksibel installasjon
  Suitable for both wall-mounted and floor-standing installation.

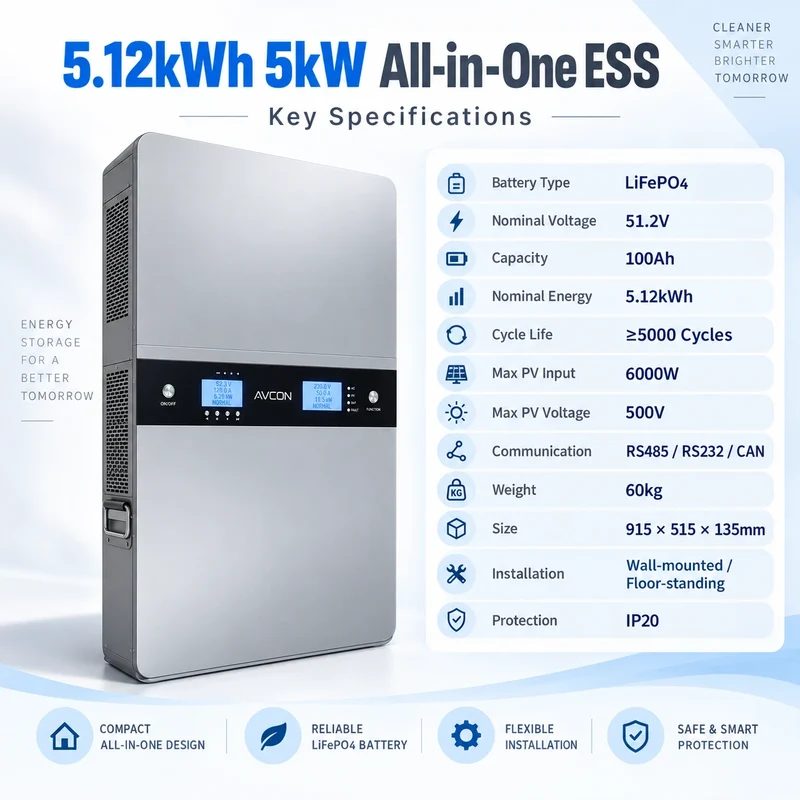

Tekniske spesifikasjoner

Spesifikasjon	Parameter
Batteritype	LiFePO4
Nominell batterispenning	51.2V
Batteri	100Ah
Nominell energi	Approx. 5.12kWh
livssyklus	≥5000 cycles @ 0.5C/0.5C, 25°C
Max. Continuous Charge/Discharge	1C
Rated Apparent Output Power	5500VA
Nominell AC-utgangsspenning	208/220/230/240VAC
Utgangsspenningsområde	184–265 V vekselstrøm
Utgangsfrekvens	50Hz / 60Hz
Maksimal PV-inngangseffekt	6000W
Maksimal PV-inngangsspenning	500V
MPPT spenningsområde	120–430V
Maksimal PV-inngangsstrøm	100A
AC inngangsspenning	208/220/230/240VAC
AC-inngangsområde	90–280V Household Appliances / 170–280V Computer Equipment
Inngangseffektfaktor	≥ 0.99
Maksimal effektivitet	> 94%
Kommunikasjon	RS485 / RS232 / CAN
Overvåking	APP / LCD
beskyttelse nivå	IP20
Nedkjøling	Tung luftkjøling
Installasjon	Vegghengt / Gulvstående
Dimensjoner	915 × 515 × 135 mm
Vekt	60 kg
Parallell drift	Ikke støttet
Garanti	2 år

The source document also lists UN38.3, MSDS, and Shipping Report documentation for the product.

Applikasjoner

This integrated energy storage system is suitable for residential solar storage, household backup power, small offices, shops, cabins, remote buildings, and other off-grid or backup power projects where a compact battery and inverter solution is preferred.
