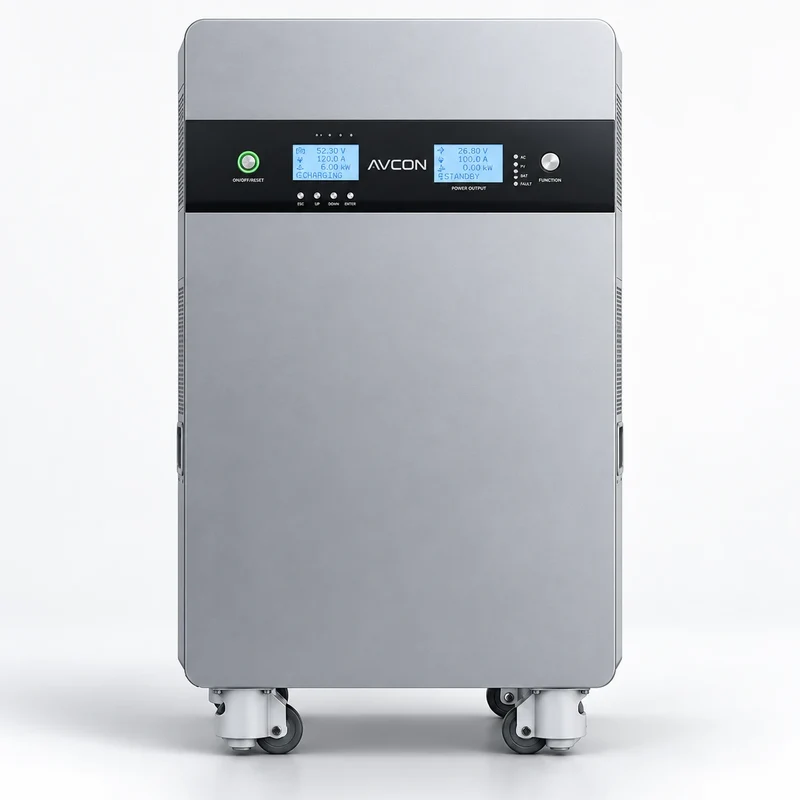

16.08 kWh 5 kW hjulbasert alt-i-ett off-grid energilagringssystem

Om dette produktet

The Shielden 16.08kWh 5kW Wheeled All-in-One Energy Storage System is designed for projects that require significantly more battery capacity while retaining the convenience of an integrated inverter and energy storage platform.

The system incorporates a 51.2V 314Ah LiFePO4 batteri, som gir omtrent 16.08kWh of nominal energy storage capacity. Compared with the 5.12kWh model, the inverter and PV input platform remain similar, while the much larger battery capacity provides substantially more stored energy for longer-duration power supply.

The battery is rated for at least 5,000 cycles at 0.5C/0.5C and 25°C, with a maximum continuous charge/discharge rating of 1C. The integrated inverter provides 5500VA rated apparent power, with selectable 208V, 220V, 230V, and 240V AC output and support for both 50Hz and 60Hz electrical systems.

The solar input section supports up to 6000W PV power, a maximum PV voltage of 500V, and an MPPT voltage range of 120–430V. AC input is also supported, allowing the unit to operate as an integrated solar, battery, and AC energy system.

APP and LCD monitoring provide convenient access to system operating information, while RS485, RS232, and CAN interfaces support communication with compatible equipment. The system is built into a floor-standing wheeled enclosure, making the larger 136kg unit easier to position and relocate within an installation environment.

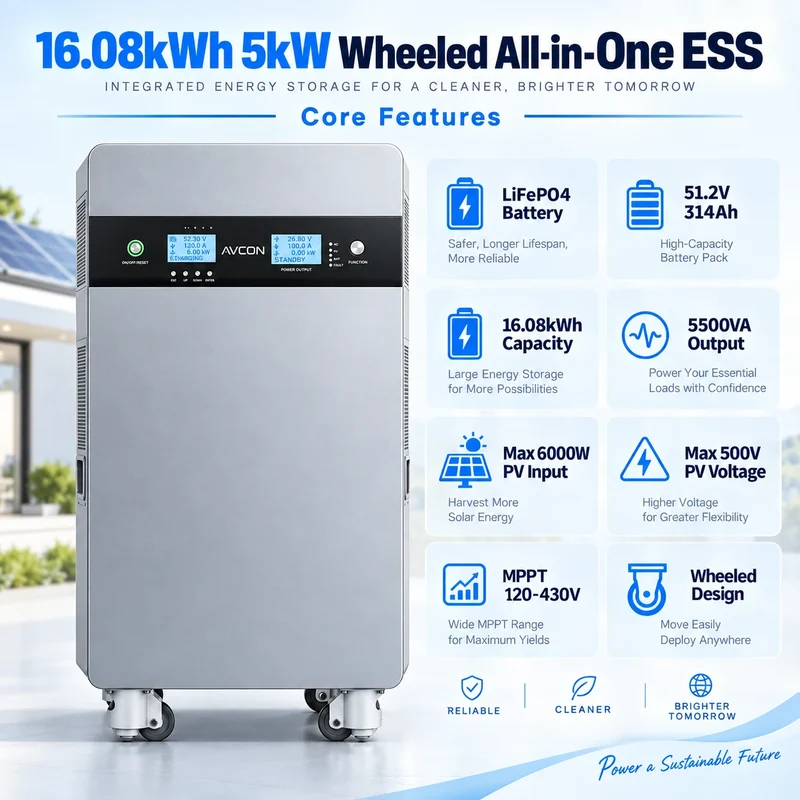

Produkt Høydepunkter

• Large 16.08kWh LiFePO4 Battery Capacity
  Equipped with a 51.2V 314Ah battery for applications requiring greater stored energy and extended operating time.

• Integrated 5kW-Class Off-Grid Inverter
  5500VA rated apparent power integrated directly into the battery storage cabinet.

• 6000W Maximum PV Input
  Supports solar arrays up to 6000W for direct solar charging.

• 500V Maximum PV Voltage
  High PV input voltage allows greater flexibility when designing solar panel strings.

• 120–430V MPPT Range
  Integrated MPPT solar charging supports a broad PV operating voltage range.

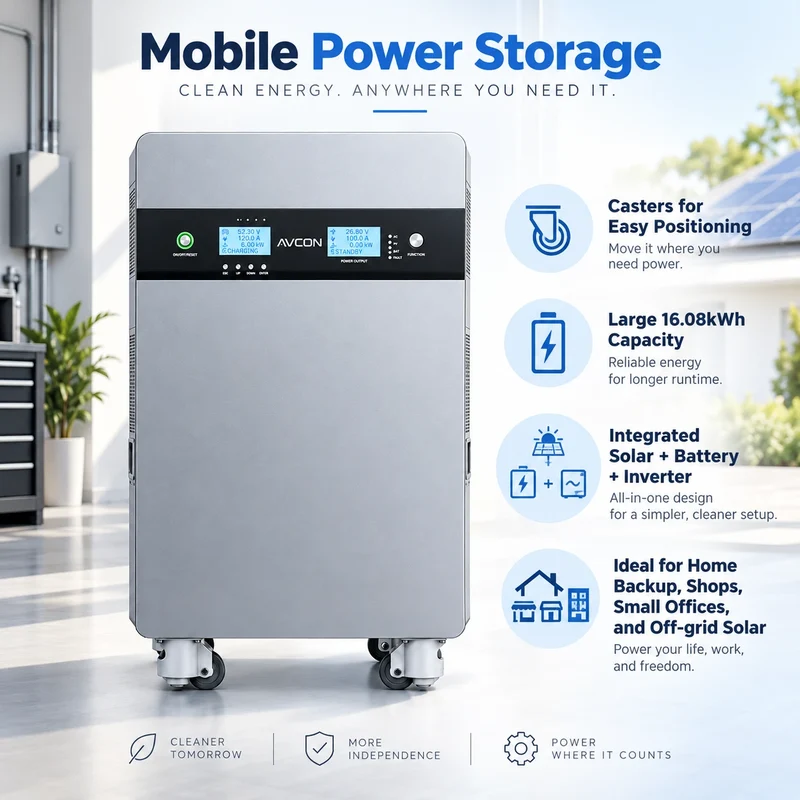

• Wheeled Floor-Standing Design
  The cabinet is equipped with casters for easier movement and positioning compared with a fixed large-capacity storage system.

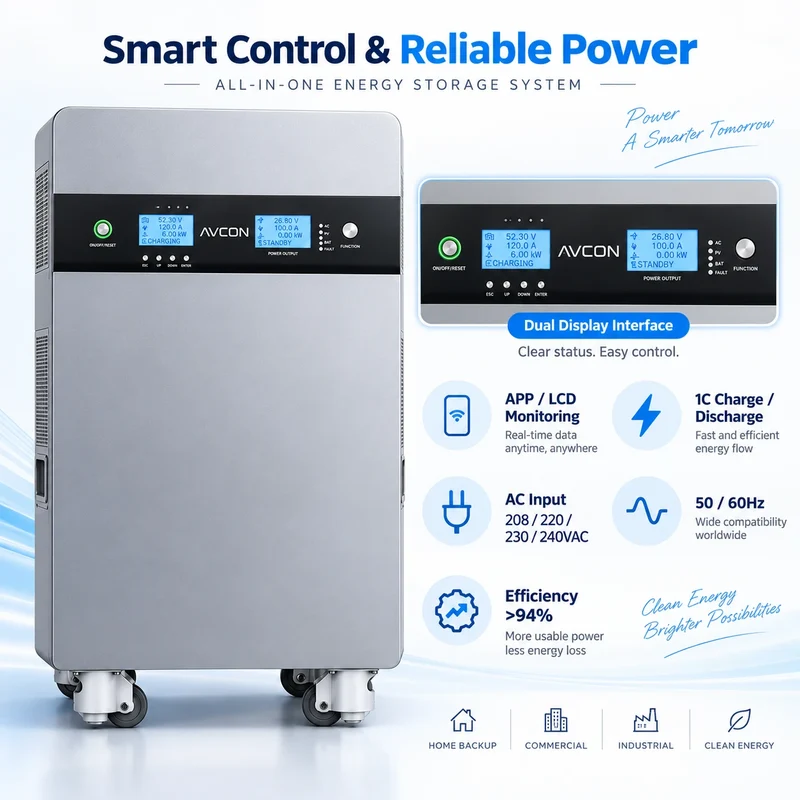

• APP & LCD System Monitoring
  Provides convenient local monitoring and system information access.

• RS485 / RS232 / CAN Communication
  Multiple communication interfaces support connection with compatible system equipment.

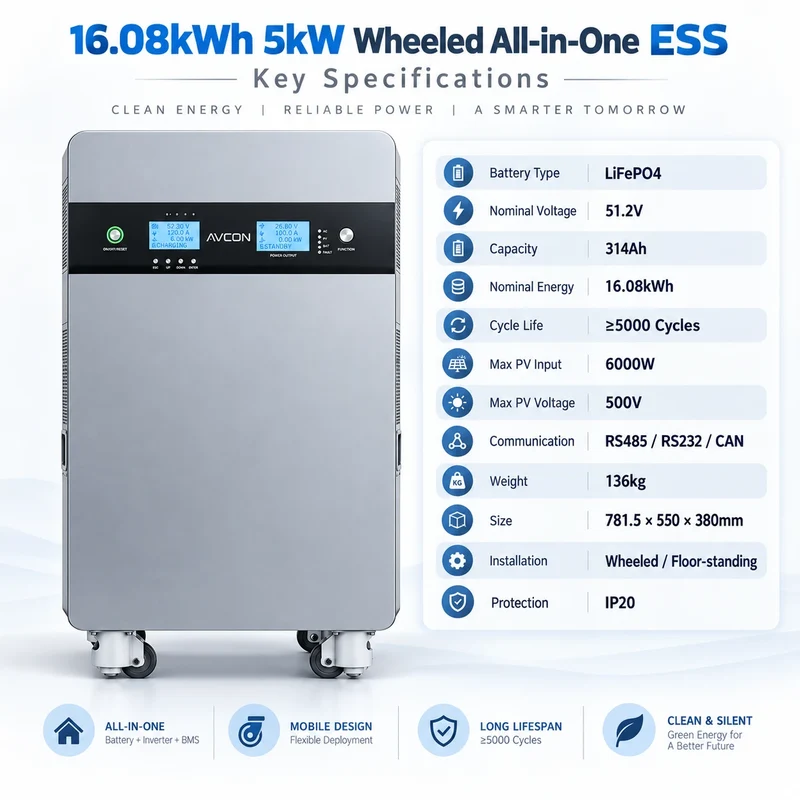

Tekniske spesifikasjoner

Spesifikasjon	Parameter
Batteritype	LiFePO4
Nominell batterispenning	51.2V
Batteri	314Ah
Nominell energi	Approx. 16.08kWh
livssyklus	≥5000 cycles @ 0.5C/0.5C, 25°C
Max. Continuous Charge/Discharge	1C
Rated Apparent Output Power	5500VA
Nominell AC-utgangsspenning	208/220/230/240VAC
Utgangsspenningsområde	184–265 V vekselstrøm
Utgangsfrekvens	50Hz / 60Hz
Maksimal PV-inngangseffekt	6000W
Maksimal PV-inngangsspenning	500V
MPPT spenningsområde	120–430V
Maksimal PV-inngangsstrøm	100A
AC inngangsspenning	208/220/230/240VAC
AC-inngangsområde	90–280V Household Appliances / 170–280V Computer Equipment
Inngangseffektfaktor	≥ 0.99
Maksimal effektivitet	> 94%
Kommunikasjon	RS485 / RS232 / CAN
Overvåking	APP / LCD
beskyttelse nivå	IP20
Nedkjøling	Tung luftkjøling
Installasjonstype	Wheeled / Floor-standing
Dimensjoner	781.5 × 550 × 380 mm
Vekt	136 kg
Parallell drift	Ikke støttet
Garanti	2 år

The original specification sheet lists UN38.3, MSDS, and Shipping Report documentation and specifies a system efficiency above 94%.

Applikasjoner

The larger-capacity model is suited to residential energy storage, extended backup power, shops, offices, small commercial facilities, remote buildings, and off-grid solar installations where a higher battery reserve is required without moving to a larger inverter power class.
